    Combined Loading

    Types of Loading Summary

    If a loading results in more than one type of stress, the total stress in a cross-section can be calculated by adding the individual stresses together (superposition). A review of the stresses covered in this course is below:
    From reference pages

    Stress Under Combined Loads

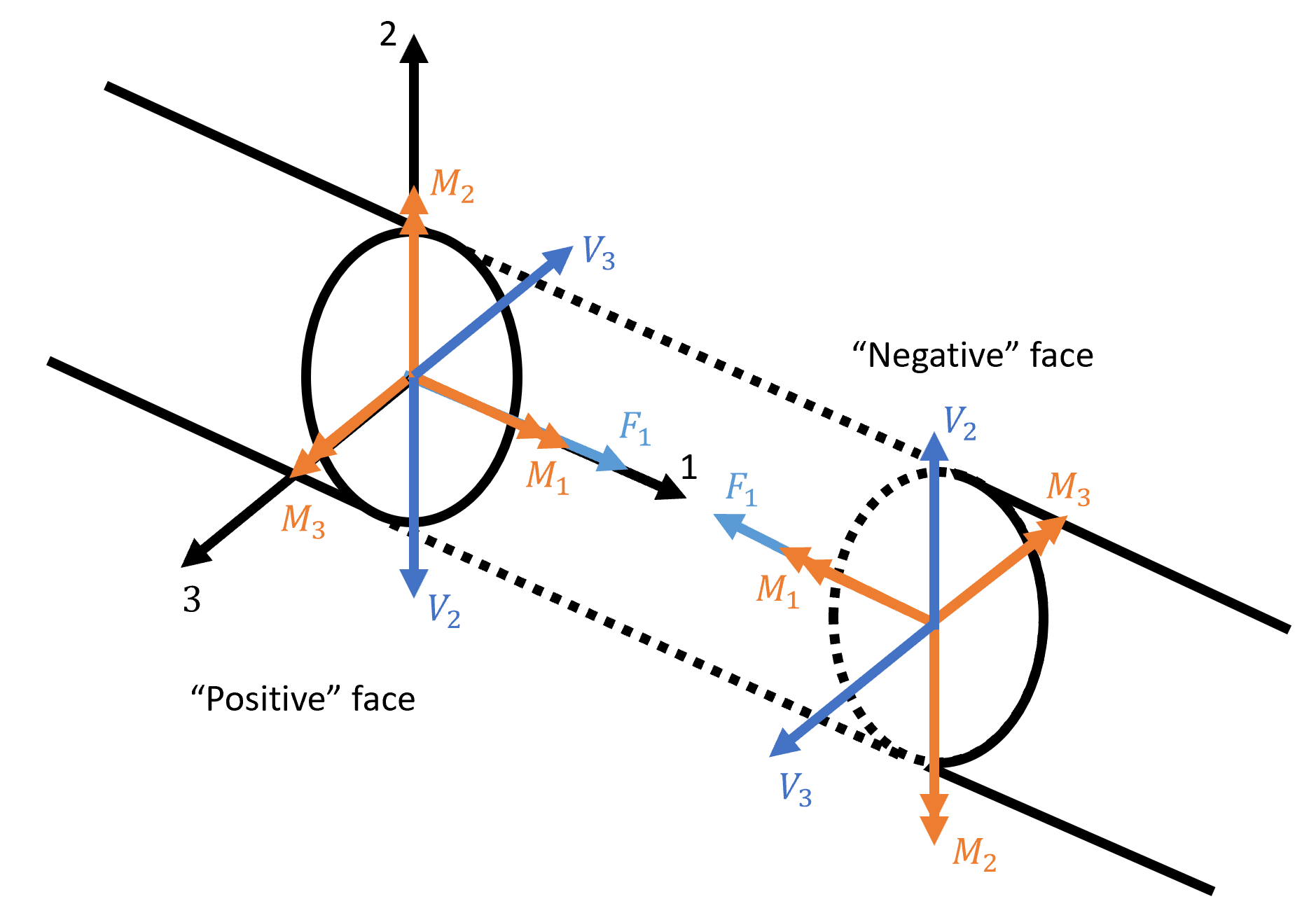

    The goal in combined loading is to determine the stresses at a point in a slender structural member subjected to arbitrary loadings. A cross-section is cut through the point of interest and the internal loading/moments are evaluated at the centroid of the section to maintain equilibrium. This internal system of loading will consist of three force components and three couple vectors (moments). To determine the stress distribution at the point, the principle of superposition is applied.

    Taken from TAM251 Lecture Notes - L8S17-18

    Combined Loading Summary:
    • Axial force and in-plane couple vectors (moments) contribute to the normal stress distribution in the section.
    • Shear forces and the twisting couple vector (moment) contribute to the shear stress distribution in the section.

    BSM: a summary of steps to solve these problems might be nice to include here. I teach students to tackle these problems by dividing them into 3 steps: 1) find internal forces/moments in a section of interest, 2) calculate all the stresses acting at a specific point within that section, 3) add up like stresses (matching subscripts) to find the total stress state (superposition)
